Porous Ceramic Ball
    • 1/4

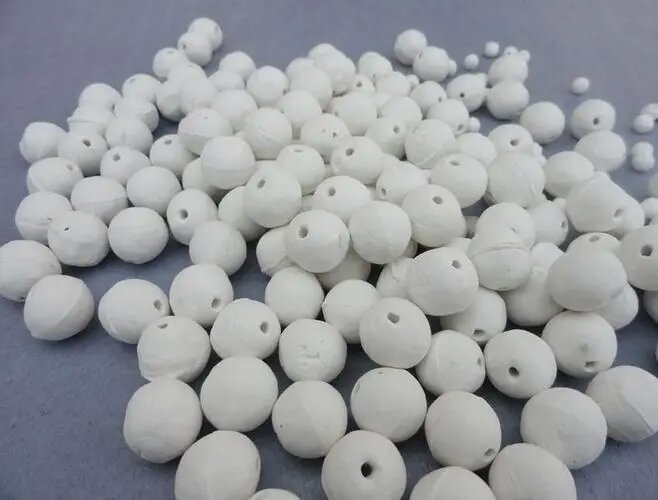

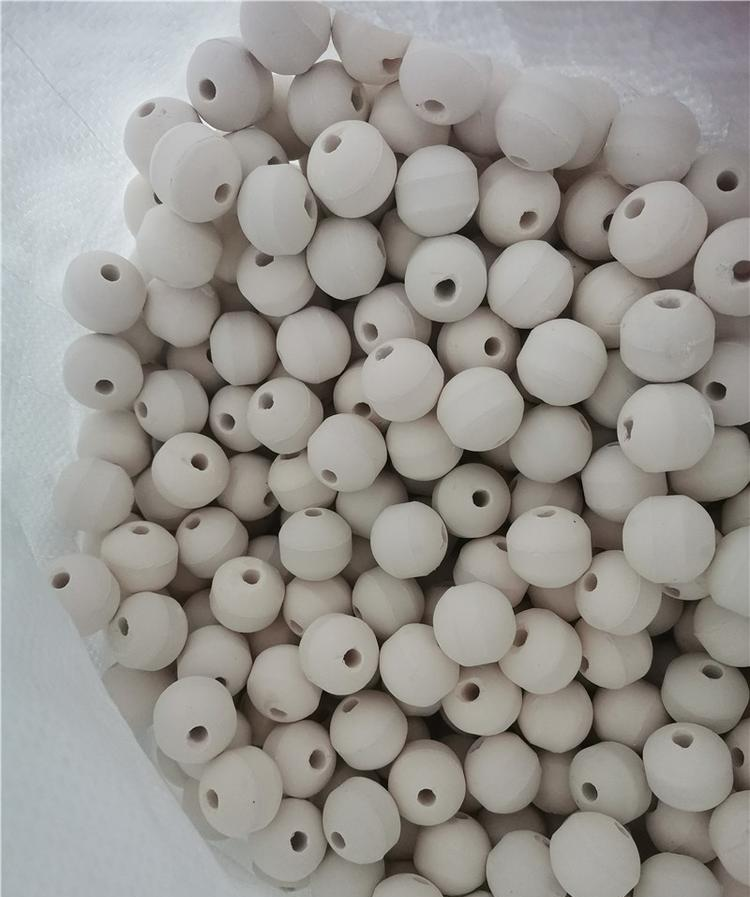

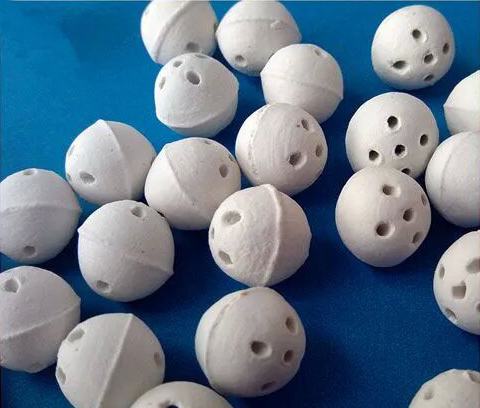

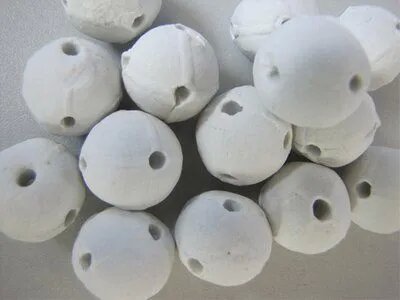

Porous Ceramic Ball

Porous ceramic ball is a new product developed on the basis of inert ceramic ball, it uses the ball diameter as the axis for opening holes, which has a certain mechanical strength, chemical stability and thermal stability as inert ceramic ball, and increases the specific surface area and voidage, thereby increasing the dispersion and flux of the material and reducing the resistance of the system. The materials of porous ceramic balls and porous ceramic balls are feldspar, feldspar-mullite, mullite, mullite, corungite, corungite, etc. In the same reactor and reactor, under the same operating conditions, compared with the original covering support material, the vapor-liquid distribution is more uniform, the flow rate is significantly increased, the system resistance is significantly reduced, and the catalyst is not caking or burning. Thus, the service life of the catalyst is extended.
INQUIRY
Detail

Porous Ceramic Ball

Porous Ceramic Ball


The porous ceramic ball is made of industrial alumina and refractory kaolin by scientific formulation, forming and high temperature calcination. It is suitable for dispersing gas and liquid, supporting, covering and protecting catalyst in high and low temperature converter, converter, hydroconverter, desulfurization tank and methanation furnace of chemical fertilizer plant. Porous ceramic balls can also be used in hot blast furnaces and heating conversion equipment in the steel industry. It has:


1. High mechanical strength, long service cycle;


2. Good chemical stability, no chemical reaction with the material;


3. Good high temperature resistance, the highest heat resistance temperature of porous ceramic ball can reach 1900 degrees.


Refractory porcelain balls are divided into ordinary porous ceramic balls, high-aluminum porous ceramic balls and low-silicon balls. Ordinary porous ceramic balls are suitable for converters and converter furnaces in sulfuric acid and fertilizer industries, and high-aluminum porous ceramic balls are suitable for hot blast furnaces and heating converter furnaces in urea, steel and other industries.


Porous Ceramic Ball

Properties Item/ Type feldspar feldspar - Mullite Mullite - Corundum corundum

Chemical composition % Al2O3 20-30 30-45 45-70 70-90 ≥90

Al2O3+SiO2≥90

Fe2O3≤1

Water absorption, % ≤5

Acid resistance, % ≥98

Alkali resistance,% ≥80 ≥82 ≥85 ≥90 ≥95

Heat resistant temperature,℃ ≥1300 ≥1400 ≥1500 ≥1600 ≥1700

Compressive strength N/ Φ3 ≥400 ≥420 ≥440 ≥480 ≥500

Φ6 ≥480 ≥520 ≥600 ≥620 ≥650

Φ8 ≥600 ≥700 ≥800 ≥900 ≥1000

Φ10 ≥1000 ≥1100 ≥1300 ≥1500 ≥1800

Φ13 ≥1500 ≥1600 ≥1800 ≥2300 ≥2600

Φ16 ≥1800 ≥2000 ≥2300 ≥2800 ≥3200

Φ20 ≥2500 ≥2800 ≥3200 ≥3600 ≥4000

Φ25 ≥3000 ≥3200 ≥3500 ≥4000 ≥4500

Φ30 ≥4000 ≥4500 ≥5000 ≥5500 ≥6000

Φ38 ≥6000 ≥6500 ≥7000 ≥8500 ≥10000

Φ50 ≥8000 ≥8500 ≥9000 ≥10000 ≥12000

Φ75 ≥10000 ≥11000 ≥12000 ≥14000 ≥15000

Stacking weight, kg/m3 1100-1200 1200-1300 1300-1400 1400-1550 ≥1550

Note: Packing density data is for reference only, not as a basis for acceptance.
