Ceramic Flat Ring
    • 1/4

Ceramic Flat Ring

The ratio of height to diameter of the flat ring packing is 0.2-0.4, the flanging of the ladder ring is canceled, and the internal curved ribs are used to improve the strength of the packing, which can be orderly arranged in the chaotic pile, the flow channel structure is reasonable, the pressure is reduced, the processing capacity and mass transfer performance are improved, and the high temperature resistance and acid and alkali resistance are improved.
INQUIRY
Detail

Acid-resistant ceramic flat ring products are based on the existing stainless steel flat ring and plastic flat ring structure, while integrating the advantages of ladder ring and pall ring by optimizing mold design, refining mud, careful sintering and other processes. We use chemical hard porcelain formula, Al2O3/SiO2 ratio of 2:1, so that more mullite (3Al2O3.2SiO2) content can be formed, so it has high mechanical strength, porcelain fine, high temperature resistance and cold and heat resistance.

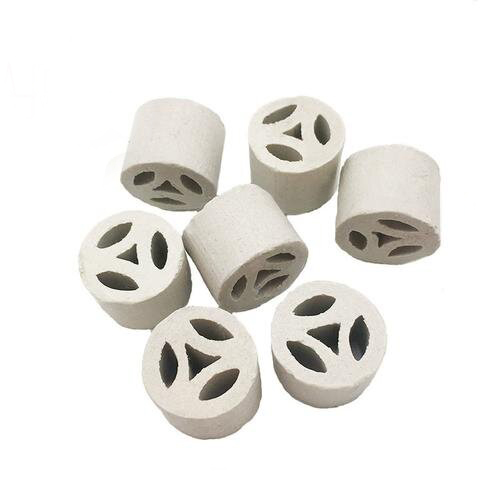

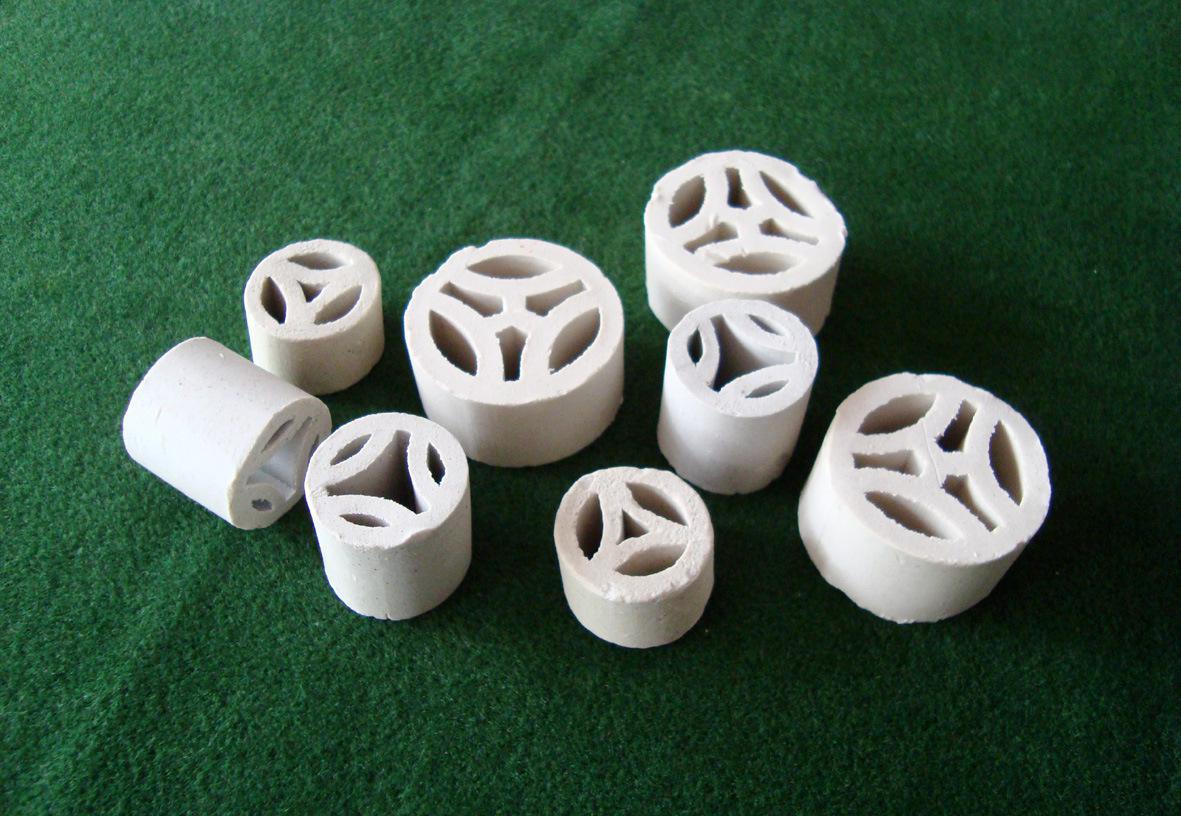

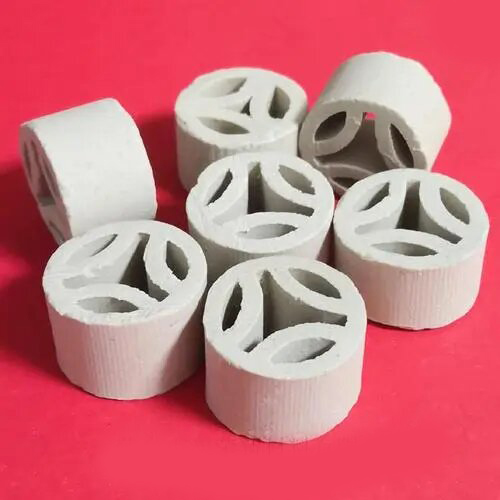

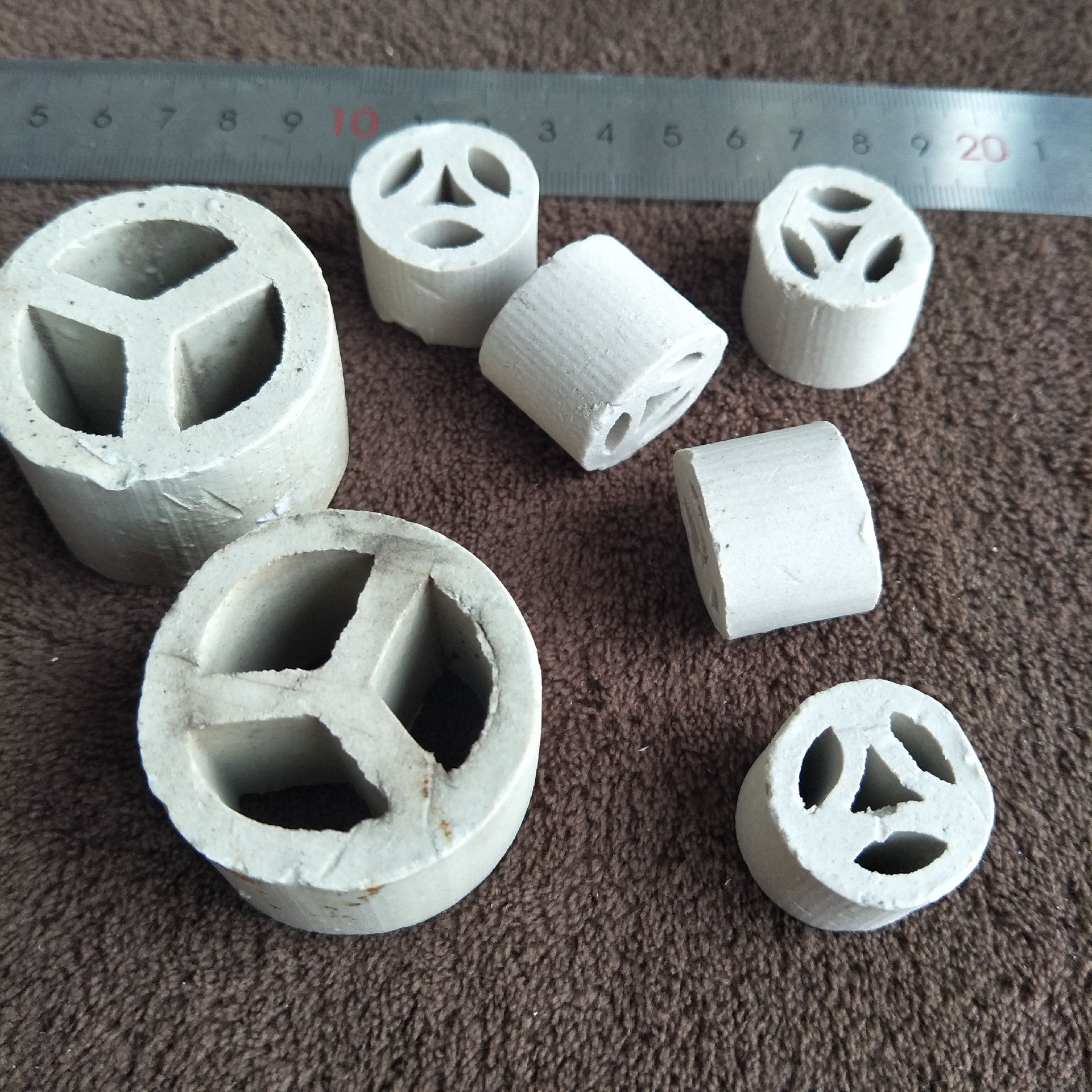

ceramic flat ring


The packing has the advantages of reasonable structure, large specific surface area, more contact area, high ventilation, uniform gas-liquid distribution, low resistance, low pressure, high strength, and better gas-liquid mass transfer performance than the general packing.
