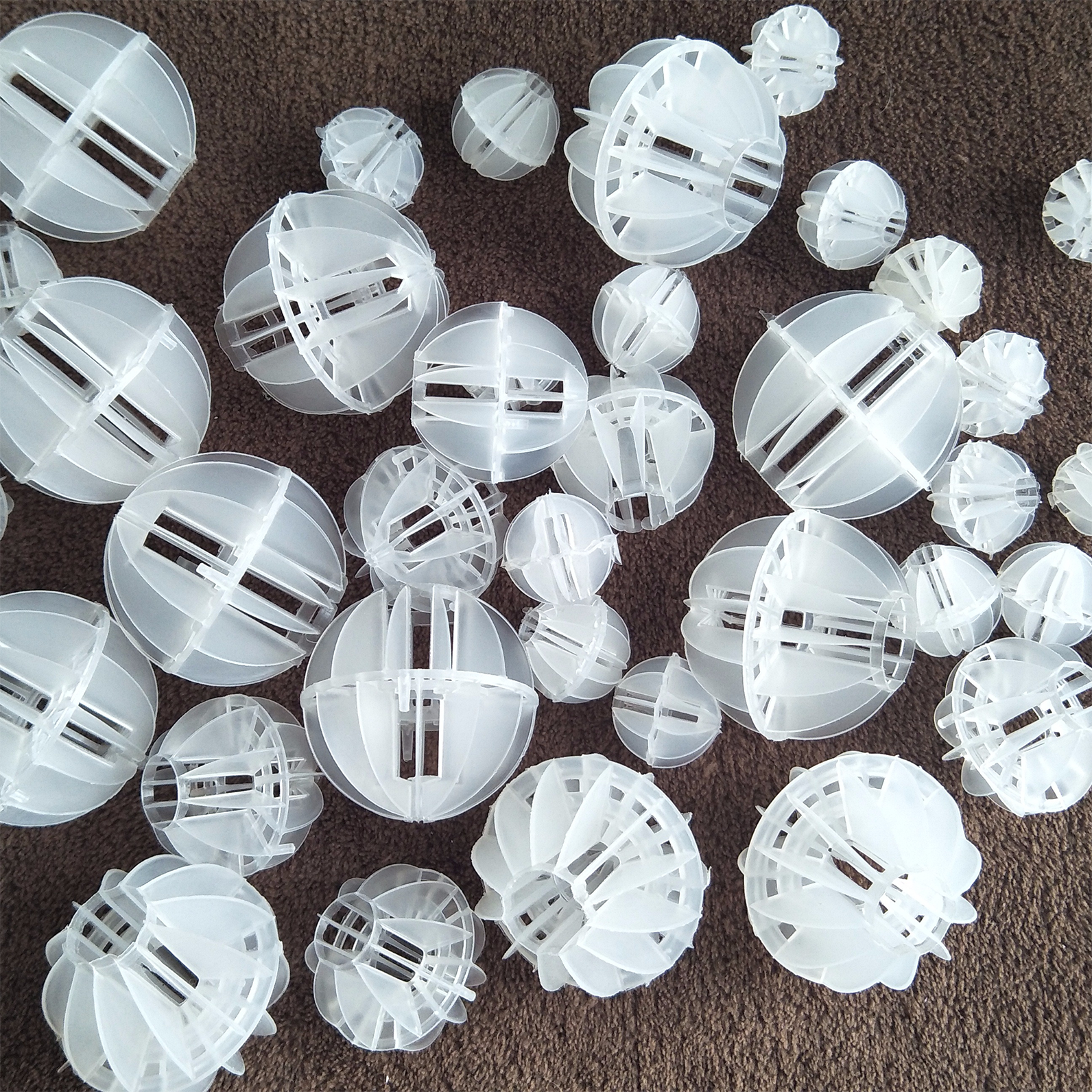

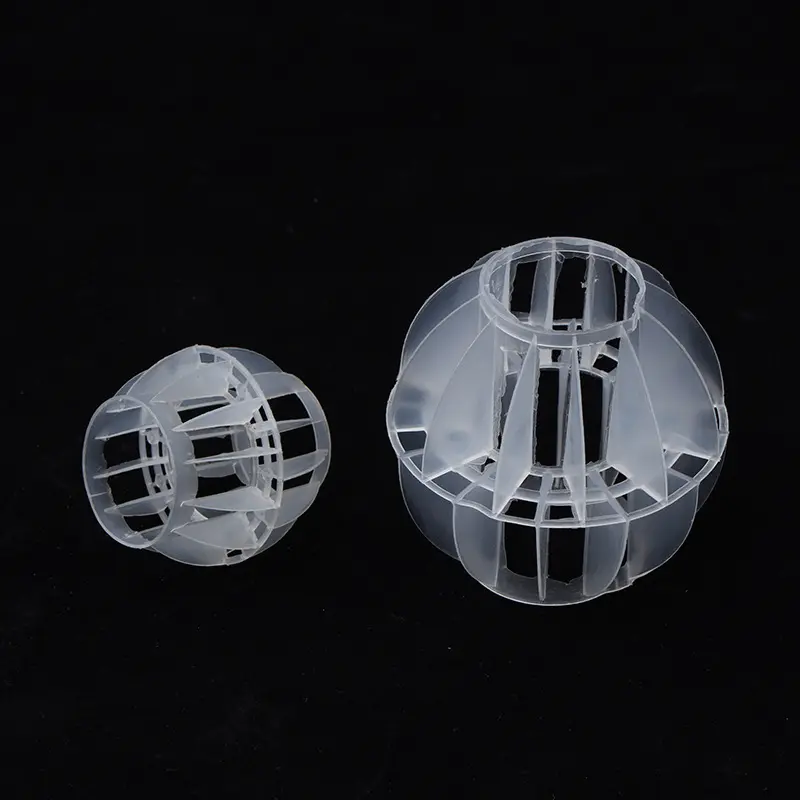

Multi-faced Hollow Sphere

Faceted hollow balls are usually spherical structures made of polypropylene (PP) plastic. It consists of two hemispheres to form a complete sphere. There are 8-12 semi-fan-shaped blades on each hemisphere according to the design needs, and the fan-shaped blades of the two hemispheres are staggered with each other. The middle part of the ball has a reinforcing ring along the entire perimeter, which enhances the structural stability of the sphere. The upper and lower blades of the reinforcing ring are evenly distributed, and these blades are arranged in a radial pattern, which further improves the firmness of the sphere. The faceted hollow sphere has a large specific surface area, which is conducive to gas-liquid exchange and improves the exchange efficiency. The surface of the sphere has good hydrophilic properties, which helps the distribution and wetting of the liquid on the surface. The sphere has the characteristics of light weight, high strength, high temperature resistance, corrosion resistance and so on. Due to its special design, the multi-faceted hollow ball shows the advantages of low wind resistance and low power consumption in the application. The main specifications of multi-faceted hollow balls include φ25mm, φ38mm, φ50mm, φ76mm, φ100mm, etc., and different specifications are suitable for different application scenarios.

Multi-faced Hollow Sphere

Merit:

Multi-faceted hollow spheres have a large specific surface area, which can provide more contact surfaces, which is conducive to improving the exchange efficiency of gases or liquids. Due to the hollow structure, the weight of the sphere is lighter, which is convenient for transportation and installation. Manufacturing materials, such as polypropylene, make the spheres have high strength and corrosion resistance during use, and can withstand a variety of harsh environments. It can withstand high temperature, is not easy to deform, and is suitable for applications in high temperature environments. Reduce the energy consumption of the system and reduce the environmental impact by improving the flow efficiency of gases or liquids.

Multi-faced Hollow Sphere

Applications:

It is used as a packing material in the exhaust gas treatment tower to help increase the contact area between the gas and the liquid and enhance the purification effect of the exhaust gas. It is used in water treatment plants, such as in bioreactors and filtration systems, to provide more surface for microorganisms to attach to and improve treatment results. It is used as a packing material in chemical reaction columns and reactors to improve the mixing and reaction efficiency of reactants. It is used in heat exchangers to optimize the heat exchange process and improve the efficiency of heat energy utilization. In the desulfurization and denitrification system, as a catalyst carrier, the reaction area is increased and the removal efficiency is improved. In gas separation equipment, it is used to improve separation efficiency and help separate different gas components. It is used as a packing material in the cooling tower to increase the contact area between the cooling water and the air and improve the cooling efficiency.

Technical Parameter

Packaging & Shipping
