Metal Perforated Plate Corrugated Structured Packing

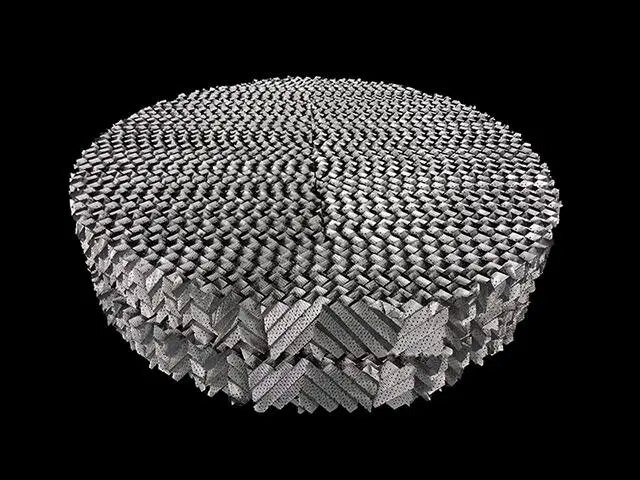

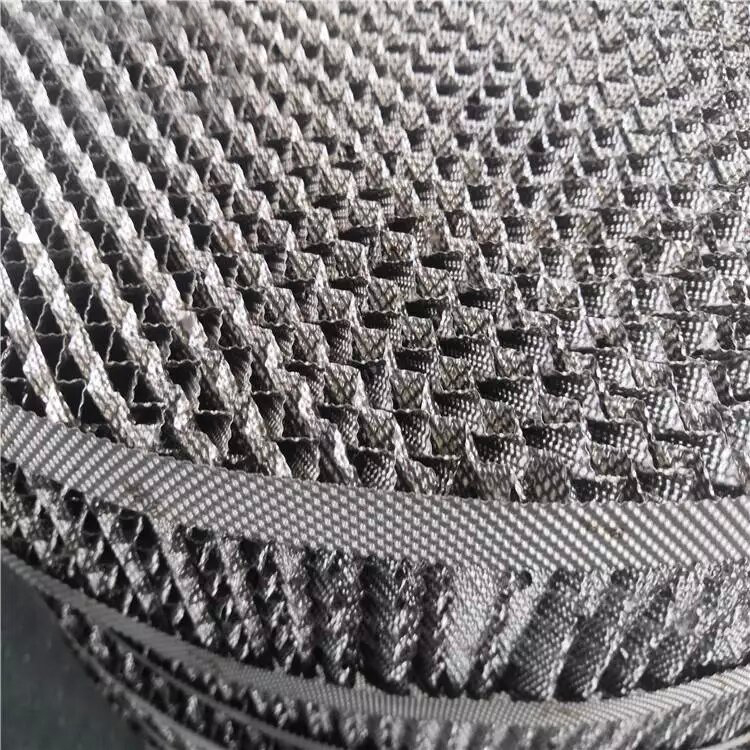

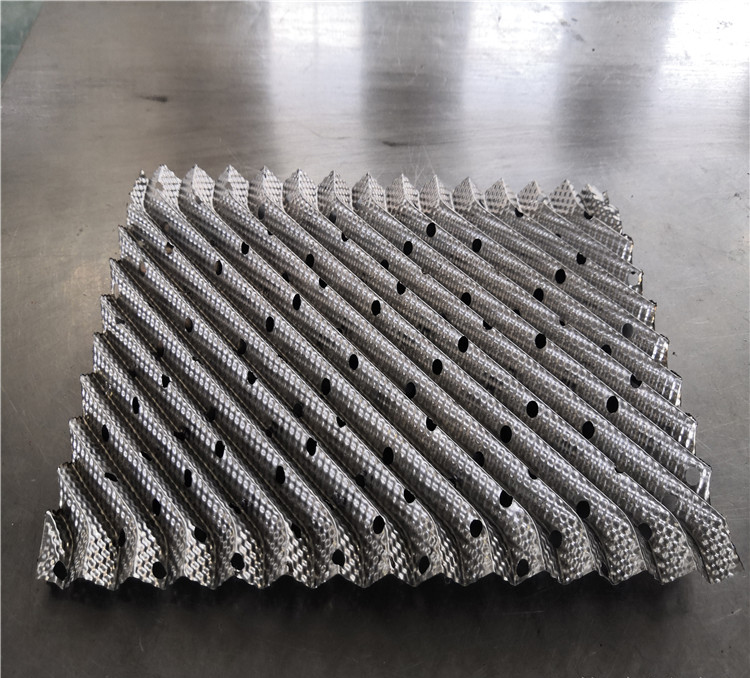

Metal Perforated Plate Corrugated Structured Packingconsists of several corrugated metal plates arranged in parallel and perpendicular to each other. Each corrugated plate has small holes, with the corrugation forming an angle of approximately 90 degrees. The channels created by the corrugations are at a 45-degree or 30-degree angle to the vertical direction. Adjacent corrugated plates create channels at a 90-degree angle to each other.
In towers with smaller diameters that use flanges for connections, the corrugated packing is made into complete discs, with a diameter slightly smaller than the internal diameter of the tower. In larger diameter towers, each disc of corrugated packing is divided into several sections, which are inserted into the tower through manholes and then assembled into complete discs inside the tower. The corrugated plates of adjacent discs are installed with a 90-degree rotation to ensure thorough mixing of the fluids within the tower.
INQUIRY
Detail

Metal Perforated Plate Corrugated Structured Packing has many advantages and wide applications. The corrugated structure and perforated plate design of this packing increase the gas-liquid contact area, enhancing mass transfer efficiency. It effectively promotes the contact and mixing of gas and liquid, thereby improving the efficiency of separation and reaction processes. The structure of this packing improves the distribution of gas and liquid within the packing layer, making it more uniform and reducing liquid flow resistance and uneven gas distribution issues.


Metal Perforated Plate Corrugated Structured Packing


Due to its rational structural design, metal perforated plate corrugated structured packing typically exhibits lower operating pressure drops, which helps to enhance the operational efficiency of towers and reduce energy consumption. Metal packings are usually made from high-temperature, high-pressure, and corrosion-resistant materials (such as stainless steel), enabling them to operate stably under harsh process conditions for extended periods. The strength of the metal materials allows this packing to withstand significant mechanical loads and impacts, making it suitable for high-load operating environments. Metal perforated plate corrugated structured packing offers a long service life and stable performance, which can reduce maintenance and replacement frequency.


Metal Perforated Plate Corrugated Structured Packing


In chemical reaction towers, separation towers, and absorption towers, it is used to improve gas-liquid mass transfer, facilitate chemical reactions, or separation processes. For example, it is used in processes like acid gas absorption and gas washing. It is also applied in petroleum refining, gas desulfurization, catalytic cracking, etc., to enhance the quality and separation efficiency of petroleum products. In exhaust gas treatment towers and wastewater treatment devices, it serves as packing for gas absorption and wastewater purification, helping to remove harmful substances and meet discharge standards. Additionally, it is used in heat exchange and gas treatment systems to improve thermal efficiency and reduce emissions.


Technical Parameter

Name

Model

Peak height（mm）

Surface area

(m2/m3)

Number of theoretical plates(1/m)

Free volume(%)

Pressure drop

(Mpa/m)

F-Factor

M/s(kg/m3)0.5

Metal Perforated Plate Corrugated Structured Packing

125Y

24

125

1-1.2

98.5

1.5*10-4

3

250Y

12

250

2-3

97

1.5-2*10-4

2.6

350Y

8

350

3.5-4

95

1.5*10-4

2

450Y

6.5

450

4-4.5

93

1.8*10-4

1.5



Packaging & Shipping

Package :

Carton box、 Jumbo bag、wooden case

Container

20GP

40GP

40HQ

Normal Order

Minimum Order

Sample Order

Quantity

25CBM

54CBM

68CBM

<25 CBM

1 CBM

< 5 pcs

Delivery Time

7 days

14 days

20 days

7 Days

3 days

Stock

Comments:

Customized making is allowed.
