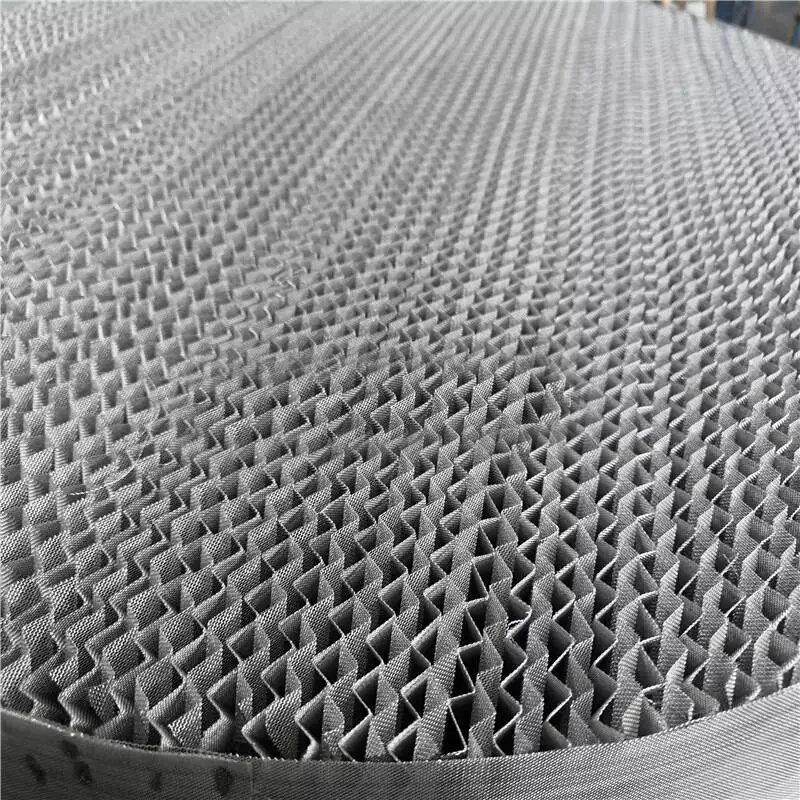

Metal Wire Mesh Structured Packing

Metal Wire Mesh Structured Packing is a type of structured packing made from finely woven stainless steel wire mesh. It is one of the most widely used packings in industrial production today. The commonly used stainless steel wire mesh for this packing is of 60 mesh density. Wire diameters are typically 0.15 mm and 0.12 mm, with a standard roll size of 1 meter wide, 30 meters long, and weighing 18.5 kg (0.15 mm mesh with 60 mesh in the warp and 50 mesh in the weft). The common materials used are 304, 304L, 316, and 316L stainless steel, although some manufacturers may use the less expensive 202 and 201 grades. While these lower-cost materials are cheaper, they are prone to rusting.
INQUIRY
Detail

Metal Wire Mesh Structured Packing is a type of structured packing made from metal wire mesh, commonly used in gas-liquid separation and mass transfer processes. Its structure and performance make it widely applicable in various fields. Metal wire mesh structured packing offers a large surface area and excellent gas-liquid contact, which helps to improve mass transfer efficiency between gas and liquid. Due to the high void fraction of the metal wire mesh structure, it has low fluid flow resistance, thereby maintaining a low pressure drop during operation and improving system energy efficiency.


Metal Wire Mesh Structured Packing


The design of the packing structure effectively distributes gas and liquid flow, reducing dead zones in liquid flow and uneven gas distribution phenomena. Metal wire mesh is typically made from high-temperature and corrosion-resistant materials (such as stainless steel), enabling it to operate stably under harsh process conditions for extended periods. The packing has high mechanical strength, allowing it to withstand significant operational loads without deforming or breaking. The structure of the metal wire mesh packing facilitates cleaning, as contaminants can be removed through physical or chemical methods, maintaining the packing's good performance.


Metal Wire Mesh Structured Packing


It is used in chemical reaction towers, absorption towers, distillation towers, and other equipment to enhance gas-liquid mass transfer efficiency for various chemical reactions and separation processes. In petroleum refining, catalytic cracking, and gas desulfurization, it improves the quality and separation effectiveness of petroleum products. In environmental protection devices such as exhaust gas and wastewater treatment, it serves for gas absorption and wastewater purification, helping to remove harmful substances and meet discharge standards. Additionally, it is used in heat exchange systems, cooling towers, and other equipment to improve heat exchange efficiency and reduce energy losses. In gas treatment equipment, it acts as a medium for gas filtration and separation, removing solid particles or droplets from gases. Due to its superior performance, durability, and versatility, metal wire mesh structured packing is widely used across many industrial fields.


Technical Parameter

Name

Model

Peak height（mm）

Surface area

(m2/m3)

Number of theoretical plates(1/m)

Free volume(%)

Pressure drop

(Mpa/m)

F-Factor

M/s(kg/m3)0.5

Metal Wire Mesh Structured Packing

CY700

4.3

700

8-10

87

4.5-6.5*10-4

1.3-2.4

BX500

6.3

500

4.5-5.5

95

3.0*10-4

2



Packaging & Shipping

Package :

Carton box、 Jumbo bag、wooden case

Container

20GP

40GP

40HQ

Normal Order

Minimum Order

Sample Order

Quantity

25CBM

54CBM

68CBM

<25 CBM

1 CBM

< 5 pcs

Delivery Time

7 days

14 days

20 days

7 Days

3 days

Stock

Comments:

Customized making is allowed.
