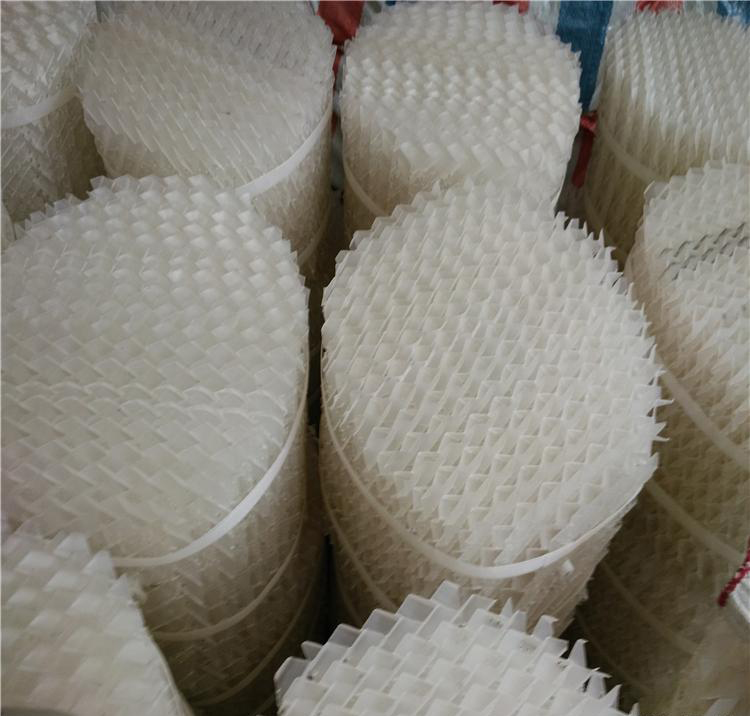

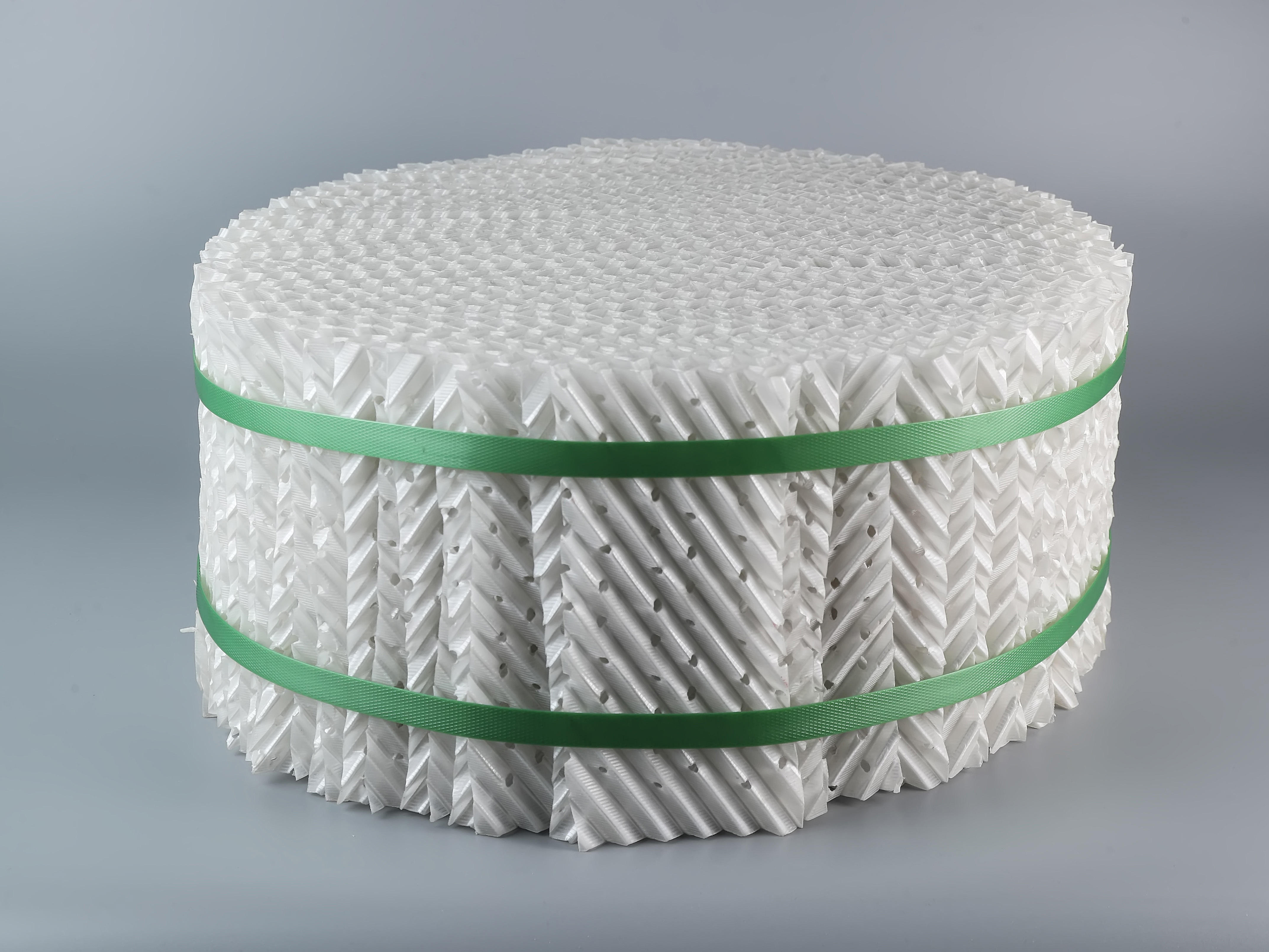

Plastic Perforated Plate Corrugated Packing

Plastic Perforated Plate Corrugated Packing is a specially designed packing widely used in gas-liquid mass transfer and reaction equipment. It is typically made from plastic materials such as polypropylene (PP), polyvinyl chloride (PVC), and polyvinylidene fluoride (PVDF), which provide excellent corrosion resistance and lightweight properties. The packing consists of thin plates with uniformly distributed perforations to increase the contact area between gases and liquids. The surface of the packing features a corrugated design that enhances the flow path of fluids, improving mixing and mass transfer efficiency. The perforated plate corrugated packing is assembled from thin plates arranged in a specific manner to form a structured packing that ensures uniform stacking within reactors or towers, creating a stable structure. The design promotes the even distribution of liquid flow, reducing liquid accumulation within the packing.

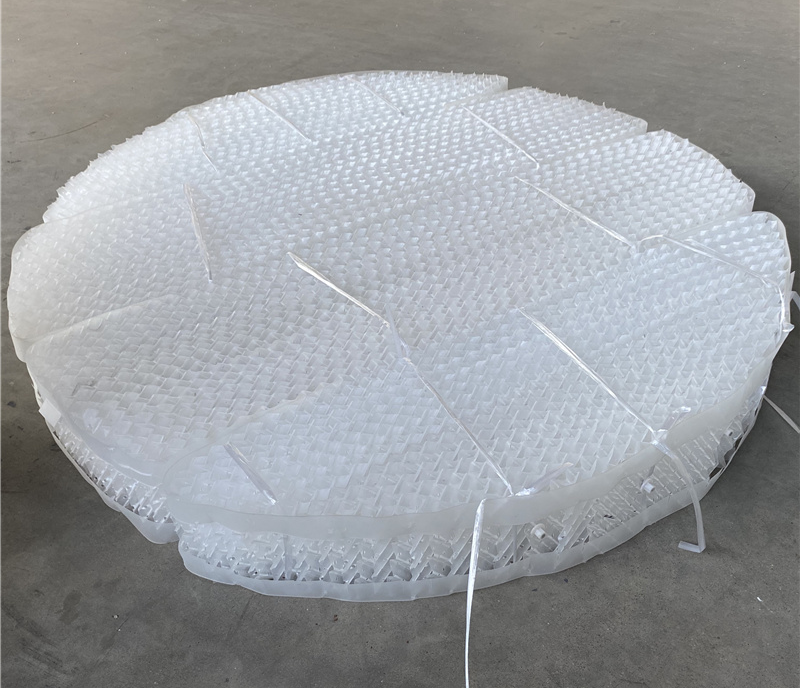

Plastic Perforated Plate Corrugated Packing

The diameter and spacing of the perforations are designed to ensure that gases or liquids pass evenly through the packing, guaranteeing good mass transfer performance. Different shapes of perforations (e.g., round or rectangular) can be designed according to specific process requirements. The corrugated design and relatively thin plate thickness result in low resistance to gas and liquid flow, improving overall flow efficiency. It is suitable for processes with high liquid loads and high operating pressures, with good adaptability to various fluid conditions. It can be used in negative pressure, atmospheric pressure, and pressurized operations, meeting diverse operational needs. Different materials have varying temperature tolerances; for example, polypropylene can withstand temperatures up to 110°C, while PVDF can tolerate up to 150°C, making it suitable for high-temperature processes.

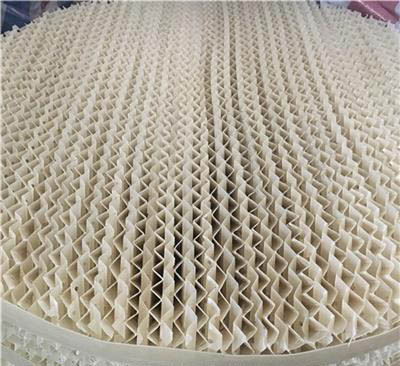

Plastic Perforated Plate Corrugated Packing

Applications of Plastic Perforated Plate Corrugated Packing:

1. Gas Absorption Towers: Enhances the contact area between gas and liquid to improve the absorption efficiency of solutes in gases.

2. Gas Desorption: Utilizes high mass transfer efficiency to help release gases from liquids.

3. Waste Gas Treatment: Used in treating waste gases containing harmful substances, removing pollutants through contact with liquids.

4. Desulfurization and Denitrification: Assists in removing sulfur compounds and nitrogen oxides from gases in waste gas treatment processes.

5. Heat Exchangers: Improves heat transfer efficiency and facilitates the heat exchange process.

6. Chemical Reactors: Increases the contact area between reactants, accelerating chemical reactions.

7. Mixing Processes: Helps achieve uniform mixing of different reactants or intermediates.

8. Water Treatment: Enhances the contact between water and chemicals to remove contaminants or improve water quality.

9. Gas Separation: Improves the separation efficiency of gases, such as the separation of oxygen from nitrogen.

Overall, plastic perforated plate corrugated packing is valued for its excellent performance and versatility across a range of industrial applications.
