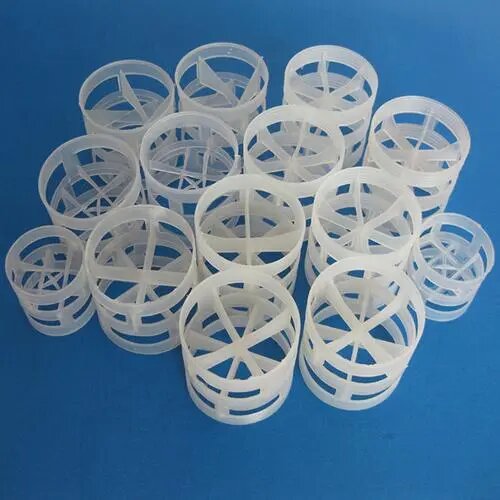

The usage method of plastic Pall ring packing

The usage methods of plastic Pall Ring packing mainly include preparations before installation, the installation process, and commissioning and maintenance after installation. The following are the detailed steps and precautions:

I. Preparations before Installation

Clean the tower: Before installing the plastic Pall Ring packing, the interior of the tower needs to be thoroughly cleaned to ensure no impurities remain, so as to avoid damage to the packing or affect the fluid distribution.

Measure the dimensions: According to the design drawings, accurately measure the inner diameter of the tower and the size of the packing to ensure that the packing can fit the tower and achieve the expected mass transfer effect.

Select tools: Based on the specifications of the packing and the structure of the tower, select the appropriate installation tools and methods, such as hoisting equipment, support plates, etc.

II. Installation Process

Wear protective equipment: Operators need to wear proper protective equipment to avoid sparks generated by the collision of the packing during the installation process, which may cause safety hazards.

Lay in layers: The principle of layering and uniform laying should be adopted. Appropriate gaps should be maintained between each layer to promote effective contact and mass transfer between the gas and liquid phases.

Control the descent speed: Use dedicated hoisting equipment to slowly send the plastic Pall Ring packing into the tower. Pay attention to controlling the descent speed to prevent uneven accumulation of the packing or damage to the tower wall.

Wet filling (optional): For ceramic packing and non-carbon steel plastic packing, if conditions permit, wet filling should be adopted. Wet filling can reduce the damage and deformation of the packing and increase the uniformity of the filling. The specific operation is: After installing the support plate, fill water into the tower, gently pour the packing from above the water surface into the water. The packing floats and falls from the water. The water surface should be more than 1m above the packing.

III. Commissioning and Maintenance after Installation

Simulated operation: After the installation is completed, observe the gas-liquid flow state of the packing layer through simulated operation, adjust the opening of the inlet and outlet valves to ensure uniform fluid distribution and avoid short circuits or dead zones.

Monitor data: Use detection instruments to monitor the changes in pressure, temperature and fluid composition inside the tower. Based on the feedback data, fine-tune the height or structure of the packing layer to achieve the best mass transfer efficiency.

Continuous operation test: Conduct long-term continuous operation tests to verify the stability and durability of the plastic Pall Ring packing under actual working conditions and ensure that the petrochemical tower can be put into production efficiently and safely.

Regular maintenance: Regular cleaning and maintenance of the packing to remove dirt and deposits accumulated on the surface is the key to maintaining its efficient mass transfer performance.

The correct usage methods of plastic Pall Ring packing include preparations before installation, precise operations during the installation process, and commissioning and maintenance after installation. Following these methods can ensure that the packing achieves the best mass transfer effect in the tower, improves production efficiency and guarantees production safety.
