What are the advantages of structured packing

The advantages of structured packing mainly include the following aspects:

High mass transfer efficiency

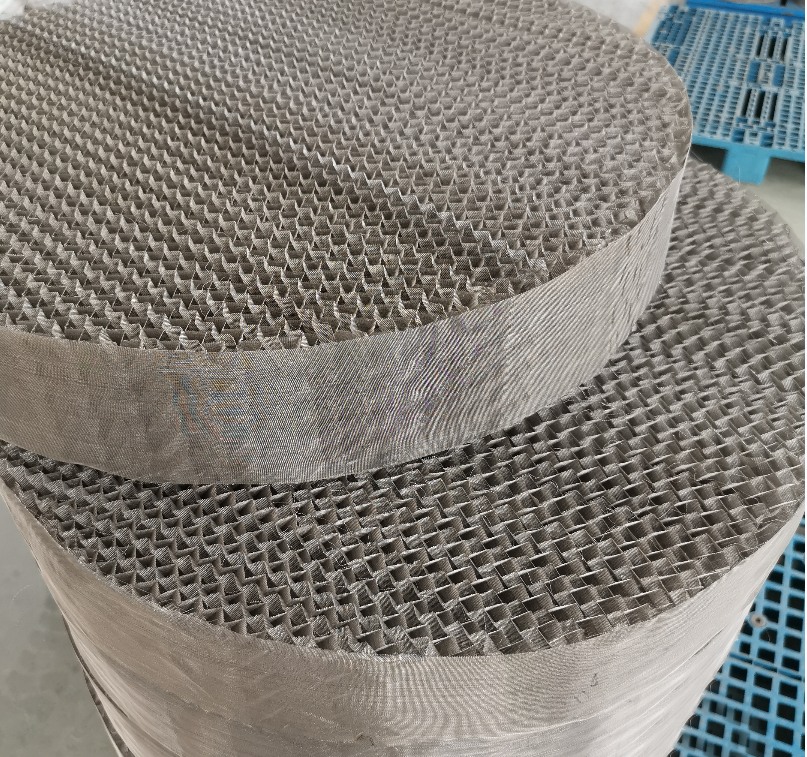

The structured packing forms a uniform liquid film through a regular arrangement of the structure, significantly increasing the gas-liquid contact area, and the mass transfer efficiency is several times higher than that of the traditional bulk packing. For example, wire mesh corrugated fillers (such as BX, CY type) perform well in difficult-to-separate and heat-sensitive systems12.

Low pressure drop and low energy consumption

Its structural design reduces the fluid flow resistance, and the pressure drop is only 1/4 to 1/6 of the bulk filler, thus reducing the energy consumption and operating costs of the equipment. For example, the energy consumption can be reduced by 15% after retrofitting the tower with corrugated plate packing.

Large processing capacity and high void ratio

The void ratio can reach more than 95%, the flux is large, the tower diameter is smaller, and it is easy to transport and install 567. Under the same load, the diameter of the regular packing tower is 30%~40% smaller than that of the sieve tray tower.

High operating flexibility and good stability

It can adapt to the load change of 40%~120%, and the amplification effect is not obvious, suitable for large-scale industrial applications. For example, after the air separation equipment uses regular packing, the start-up time is reduced to 26 to 30 hours.

Low liquid holdup and fast start-up

The liquid holdup is only 1% to 6% of the tower volume, reducing the liquid residence time, which is conducive to achieving a stable operating state quickly.

Material variety and corrosion resistance

Provide metal (stainless steel, titanium, etc.), plastic, ceramic and other materials to meet the needs of high temperature, high pressure, corrosive environment 146. For example, ceramic fillers are suitable for fine chemicals and metal fillers for petrochemicals.

Compact structure and easy maintenance

Types such as wire mesh corrugated packing are compact, easy to install and maintain, and some products (such as grille combination packing) support quick replacement 69.

These advantages make structured packing widely used in chemical, petroleum, environmental protection and other fields, especially suitable for efficient separation, energy saving and large tower transformation 1457.
