What does the maximum F-factor of structured packing mean

The maximum f factor of structured packing refers to the theoretical or practical maximum value of the packing factor (f) under specific working conditions, and its core significance is to reflect the balance relationship between the fluid mechanical properties of the packing and the mass transfer efficiency. The specific analysis is as follows:

1. Definition and formula of f factor

The formula for calculating F-factor (packing factor) is:

f = a / e³

Among them:

a is the specific surface area (unit: m²/m³), reflecting the gas-liquid contact area provided by the packing;

e is the void ratio (unit: m³/m³ or %), which represents the degree of porosity of the packing layer.

Second, the physical significance of F-factor

Hydrodynamic performance index

The smaller the f value is, the lower the flow resistance of the packing, the smaller the pressure drop when the gas passes through the packing layer, and the larger the flux.

For example, the f value of wire mesh corrugated packing is usually 20 to 30 1/m, while the f value of grid packing can reach 80 to 100 1/m, which is higher in pressure drop but greater in flux.

Tradeoff between mass transfer efficiency and pressure drop

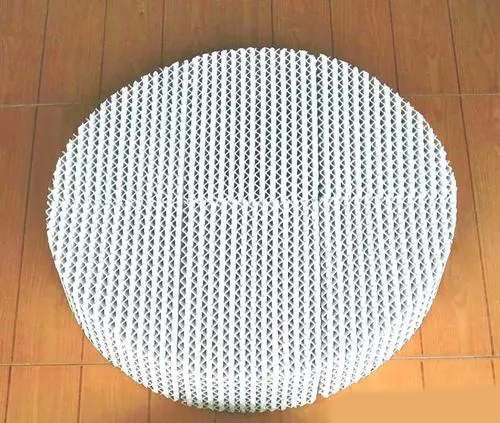

Low F-number packings (such as wire mesh corrugated packings from Henerwo Chemical) : low pressure drop, high efficiency, suitable for scenarios sensitive to pressure drop (such as vacuum rectification).

High F-number packings (such as grids) : high flux, strong plugging resistance, but large pressure drop, suitable for high load or easy plugging scenarios.

3. Application scenarios of maximum F-factor

Extreme condition adaptation

In high temperature, high pressure or high viscosity media, it may be necessary to sacrifice part of the mass transfer efficiency to reduce the pressure drop, and in this case, it is more appropriate to choose a high F-number packing (such as sheet metal ripple).

Process optimization requirement

If the separation task is more concerned with throughput than ultimate efficiency, high F-number packings can reduce equipment size and overall cost by increasing throughput.

4, typical packing f value range

packing type F-value range Characteristics Applicable scenarios

Wire mesh corrugated packing 20~30 1/m low pressure drop, high efficiency vacuum distillation, corrosive media

Grid packing 80~100 1/m high flux, strong plugging resistance High load, easy plugging scene

Plate corrugated packing 30~60 1/m balance efficiency and pressure drop conventional rectification, absorption

Sum up

The maximum F-factor is not the target value, but a parameter that reflects the matching degree of the packing structure and the working condition. The actual selection should be combined with the comprehensive evaluation of mass transfer efficiency, pressure drop, flux and economy, and the optimal F-value range should be determined by experiment or simulation.
