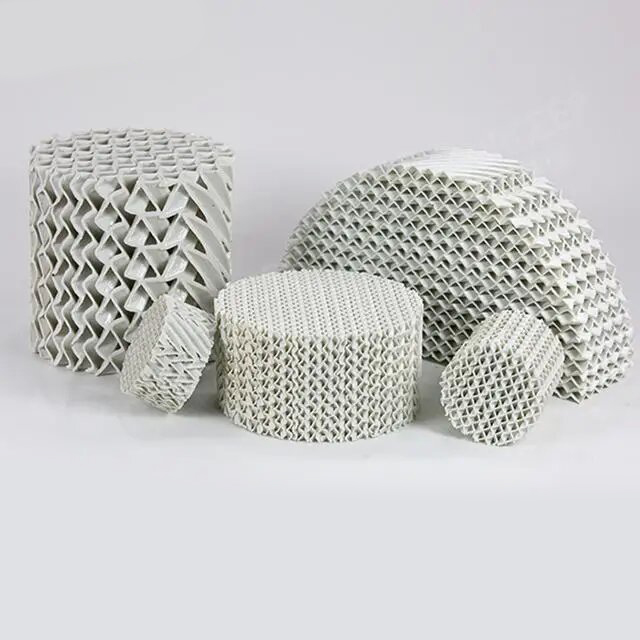

How to assemble 500Y ceramic corrugated structured packing

With an in-depth understanding of the characteristics and benefits of the 500Y ceramic corrugated packing, the assembly process became a key step in ensuring efficient operation of the reactor or tower. First of all, preparation should not be neglected. Operators should wear protective gear, ensure that the work area is clean and tidy, and have all necessary tools and materials, such as special clamps, sealants, and cleaning cloths.

The next step is the accurate measurement and layout of the fill. According to the size and design requirements of the tower or reactor, the required number of packings is precisely calculated and pre-arranged on the ground or platform to form an orderly ripple layer. This step is crucial for the subsequent efficient assembly, which can effectively reduce the working time at altitude and improve the installation efficiency.

Then, it enters the formal assembly stage. The operation team needs to work closely together, using a top-down or bottom-up approach to install layer by layer. For 500Y ceramic corrugated packing, its unique corrugated design makes it possible to form good contact and support between adjacent layers, but at the same time, it is also required to ensure the flatness and perpendicularity of each layer of packing when installed to avoid bias or blockage during operation. Therefore, the special fixture is used to gently grip the edge of the packing, slowly and evenly into the tower body, and the necessary adjustments and corrections need to be made after each layer is placed.

In the assembly process, special attention should be paid to the clearance treatment between the packing and the tower wall. In order to ensure the uniform distribution of gas and liquid, these gaps are usually filled with an appropriate amount of soft packing or other sealing measures to reduce the formation of dead corners and vortex zones.

After the assembly of all packings is completed, a comprehensive inspection and cleaning work is carried out. Make sure that all packings are firmly installed without loosening or dislocation, and clean up debris and impurities generated during installation to ensure the cleanliness of the tower body. At this point, the assembly work of 500Y ceramic corrugated packing has been successfully completed, and we are ready to meet the subsequent debugging and operation challenges.
