How to select ceramic structured packing

Ceramic structured packing is an efficient and versatile device, which is widely used in many industrial fields. The following is a detailed analysis from the perspective of product structure, product selection, product advantages, and use scenarios.

First, product structure

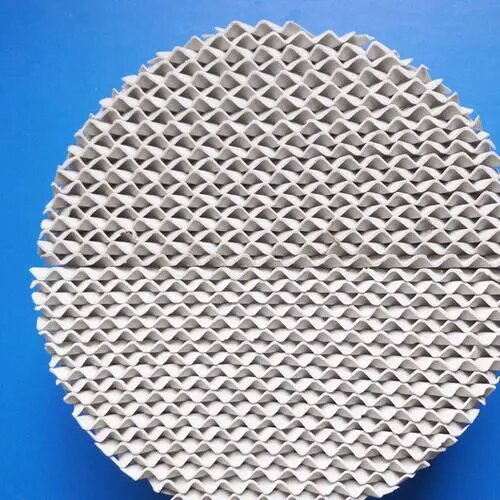

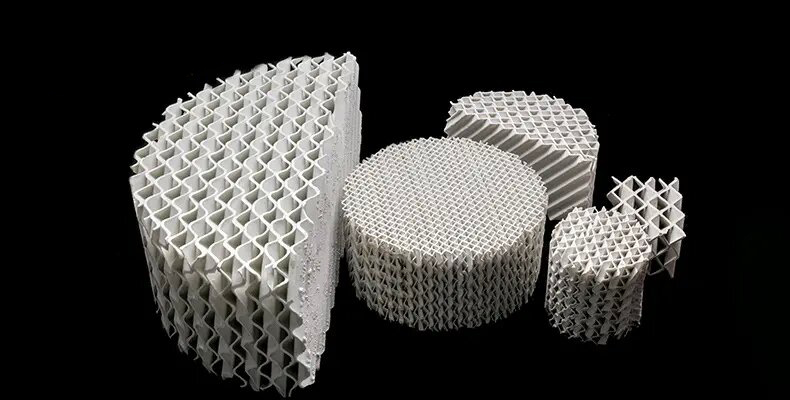

Ceramic structured packing mainly consists of plate ripple, support beam and press plate. The surface of the corrugated plate has a special corrugated structure, which can increase the surface area of the packing and improve the mass transfer efficiency of the gas-liquid two phases. The support beam plays the role of supporting and fixing the packing to ensure the stability of the equipment. The pressure plate can prevent the packing from moving upward to ensure the normal use of the equipment.

Second, how to choose the product

The selection of suitable ceramic structured packing needs to consider the following aspects:

1. Material: The material of ceramic structured packing is generally alumina, zirconia and other high temperature ceramic materials, need to choose the appropriate material according to the actual use of temperature and pressure.

2. Ripple shape: The corrugated shape of ceramic regular packing has a variety of forms such as straight grain, cross grain, Angle grain, etc., and the appropriate ripple shape needs to be selected according to the actual gas-liquid dispersion effect.

3. Specifications: The specifications of ceramic structured packing are different, and the appropriate specifications need to be selected according to the actual needs of the packing area and equipment size.

4. Manufacturer: Choosing a strong manufacturer can ensure product quality and after-sales service, and can provide more professional technical support.

Third, product advantages

Ceramic structured packing has the following advantages:

1. High mass transfer efficiency: The design of ceramic structured packing can increase the surface area of the packing and improve the mass transfer efficiency of the gas-liquid two phases.

2. High stability: The material of ceramic structured packing is high temperature ceramic material, which has high stability and can adapt to various harsh working environments.

3. Long life: ceramic structured packing has good wear resistance and long life, which can reduce the cost of replacing packing.

4. Easy to clean: The surface of ceramic regular packing is smooth, not easy to accumulate dirt, easy to clean, can reduce cleaning costs.

4. Use scenario

Ceramic structured packings are widely used in the following scenarios:

1. Chemical industry: In the chemical industry, ceramic structured packing can be used in reactors, absorption towers, rectification towers and other equipment to improve the efficiency of material mass transfer.

2. Pharmaceutical industry: In the pharmaceutical industry, ceramic structured packings can be used in bioreactors, rectification towers and other equipment to improve drug extraction efficiency.

3. Environmental protection industry: In the environmental protection industry, ceramic structured packings can be used in wastewater treatment, waste gas treatment and other equipment to improve treatment efficiency.

4. Power industry: In the power industry, ceramic structured packing can be used in boilers, cooling towers and other equipment to improve cooling effect and heat transfer efficiency.
