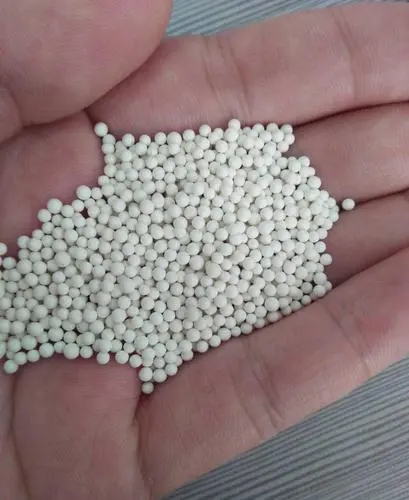

Zirconia ball

Zirconia beads are mostly composed of tetragonal phase zirconia, so it is also called "TZP" zirconia beads, which are made of micron level and subnano level zirconia and yttrium oxide as raw materials, and are used for ultra-fine grinding and dispersion of materials requiring "zero pollution" and high viscosity and high hardness.
INQUIRY
Detail

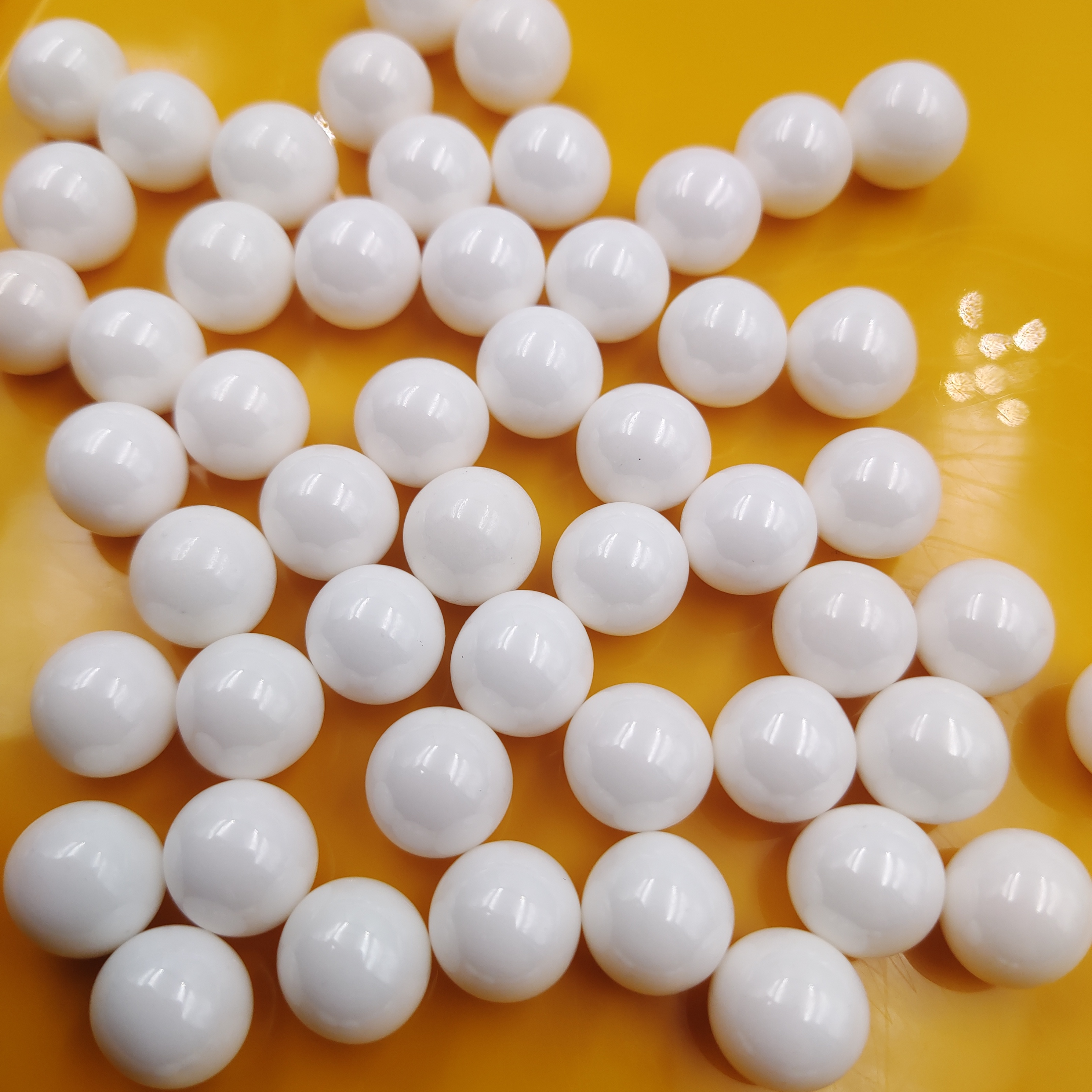

zirconia ball

The zirconia content of yttrium stabilized zirconia beads is approximately 95%, so it is often called "95 zirconia" or "pure zirconia baht". The use of rare earth yttrium oxide as a stabilizer, the use of high whiteness, high fineness of raw materials to ensure that the material does not pollute.


Application industry: Mainly used in the requirements of "zero pollution" and high viscosity, high hardness material ultrafine grinding and dispersion, such as: non-metallic minerals, pesticides, electronic ceramics, magnetic materials, titanium dioxide, medical supplies, pigments, dyes, inks, special chemical industry.


Yttrium stabilized zirconia beads characteristics: at room temperature with high strength and high toughness, high density, good wear resistance, high temperature corrosion resistance, high stiffness, no magnetic conductivity, electrical insulation, thermal expansion coefficient close to the advantages of steel. When the zirconia ceramic ball is at 600℃, the strength and hardness are almost unchanged. Using yttrium oxide as stabilizer, it is made by special molding process and high temperature roasting and phase fixing process.



1. High grinding efficiency: the specific gravity of yttrium-stabilized TZP zirconia ceramic microbeads is 1.6 times that of ordinary yttrium-stabilized zirconia beads, which has higher grinding efficiency under the same conditions.



2. Good fluidity: the product is well rounded, the surface is smooth, and the wear of the equipment is lower than other grinding machines.



3. Impact resistance, low wear: TZP zirconia ceramic microbeads toughness is good, in the high-speed, high concentration of the machine does not crack, peeling, wear only 1/2 of zirconia silicate beads.



4. Low cost of use: The selection of this product will bring you comprehensive cost reduction such as media wear, power consumption, labor, equipment, etc., and product quality is greatly improved.

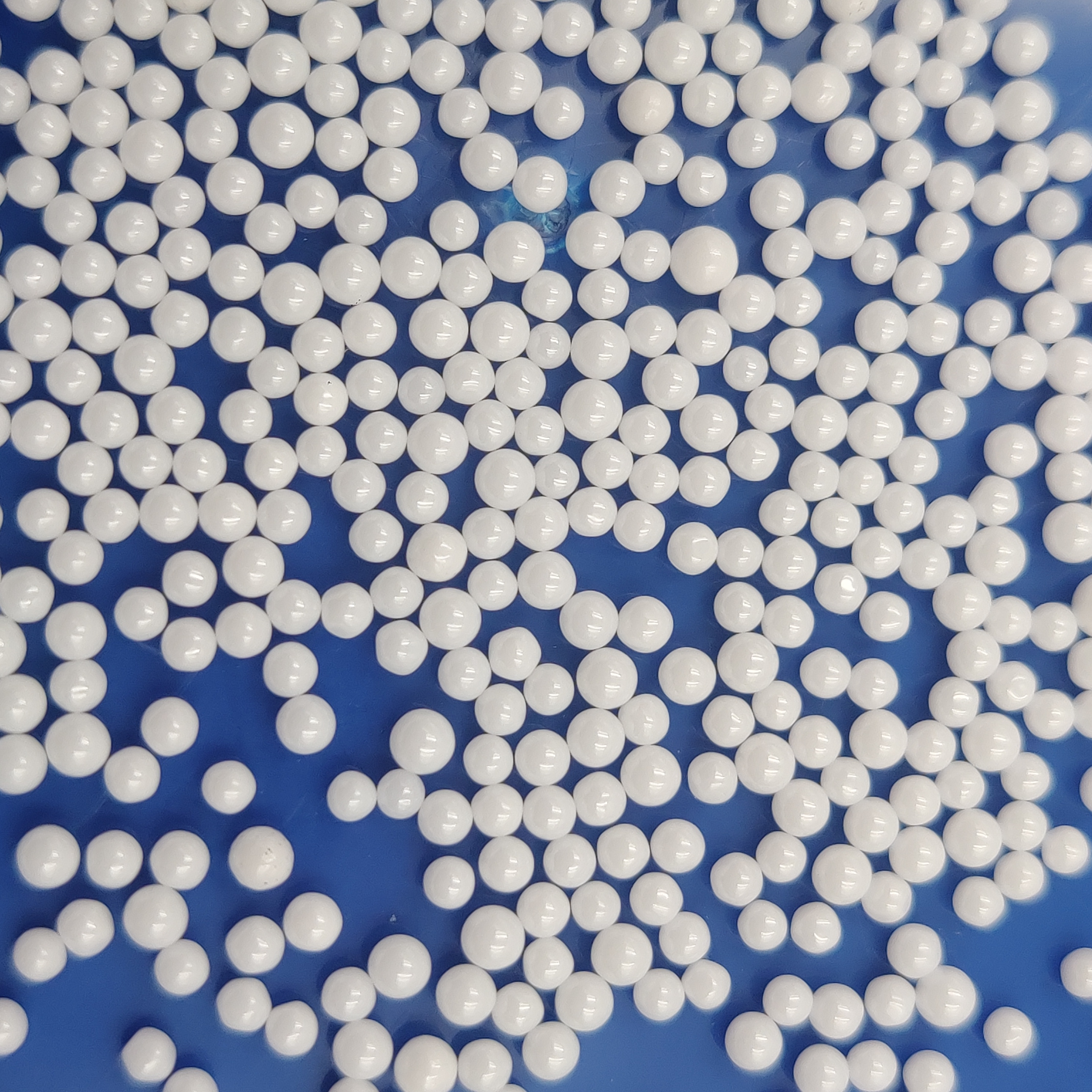

Zirconia ball


Performance index of yttrium stabilized zirconia beads

Density (g/cm3)    ≥ 6.00

Bulk specific gravity (g/cm3)   ≥ 3.60

Vickers hardness (HV) ≥ 1250

Sphericity (%) ≥ 98

Packing (kg) 25kg plastic drum, 1 ton bag

Size (mm) 0.05-30.0
